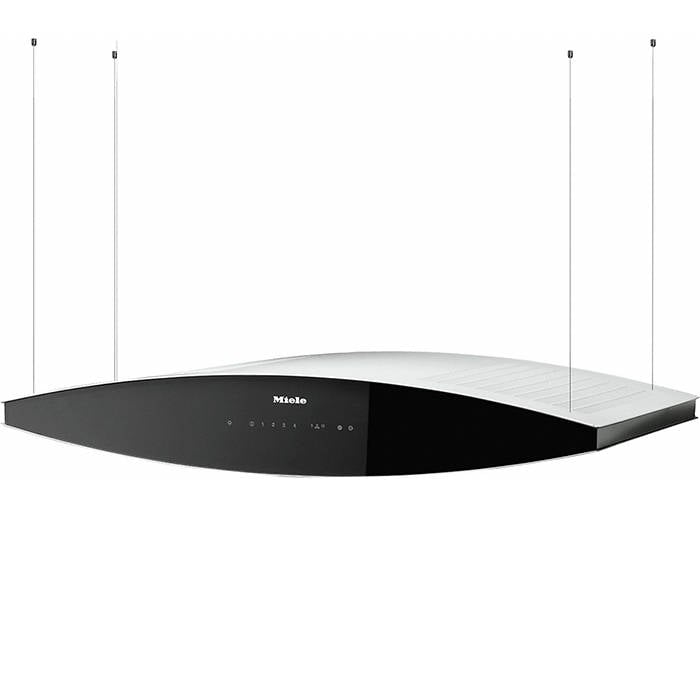

Miele DA7006D Aura Island Extractor With Con@ctivity 2.0 – Re-circulation only

SKU: DA7006D

Discontinued

This product is discontinued and no longer available to purchase.

Warranty 2 Years

2 year manufacturer warranty

Standard Delivery Stock on order - Call us for latest availability info

Further details can be found on our delivery information page.

Help & Advice Speak to our experts today

Need help or technical advice on a product or service? Get in touch, we’re always happy to help.

Call us on : 01603 599 599

Key Features

• Island cooker hood • LED lighting • Touch control • 1000mm wide • Con@ctivity 2.0 • NoSmell charcoal filter • Powerful – 600m3/h booster rate • 3 power levels • Energy efficiency – D

• Island cooker hood

• LED lighting

• Touch control

• 1000mm wide

• Con@ctivity 2.0

• NoSmell charcoal filter

• Powerful – 600m3/h booster rate

• 3 power levels

• Energy efficiency – D

Construction type
Island cooker hood o
Design
Colour Black
RAL colours available as customisation on request o
RAL colour by special order
Optimum colour matching of you Miele cooker hood to your kitchen furnishings - On request many cooker hoods can be painted in the desired RAL colour.
Customisation possible on request o
Miele INDIVIDUAL
Just for you: Cooker hoods can be customised to suit your requirements.
Variable height available as customisation on request o
Operating modes
Type of air guide Recirculation
User convenience
Electronic controls o
Touch-on-glass controls o
Power levels (number without Booster level) 3
Booster level o
Programmable Booster level switch-off o
Booster setting switch-off
Full power when required: The Booster setting is efficient at extracting strong cooking vapours and odours.
Run-on time 5 / 15 min. o
Run-on function
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Grease filter saturation indicator programmable o
Filter indicator
Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated.
Active charcoal filter saturation indicator programmable o
Filter indicator
Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated.
Cleaning convenience
Easy-to-clean canopy interior - CleanCover o
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Efficiency and sustainability
Energy efficiency class D
Annual energy consumption in kWh/year 83.2
Fluid dynamic efficiency class F
Lighting efficiency class A
Lighting efficiency class
This class specifies the illumination of the surface below the cooker hood in relation to energy consumption. The less energy consumed for good illumination, the better the classification. Classification ranges from class A (very efficient) to class F (inefficient).
Grease filtering efficiency class A
Grease filtering efficiency class
This class indicates the efficiency of the grease filter. The more grease captured by the grease filter, the better the grease filtering efficiency of the filter. Classification includes classes A (very efficient) to F (inefficient).
Appliance networking
Miele@home o
MobileControl o
Automatic function Con@ctivity 2.0 o
Con@ctivity 2.01
Optimum room climate: The required fan output is automatically controlled by the hob settings.
Filter system
Number of dishwasher safe stainless-steel grease filters (10-ply) 4
Lighting
LED o
LED spotlights
Environmentally friendly and very long lasting: With up to 4.5 W they illuminate the hob with a warm light.
Light intensity in Lx 580
Colour temperature in K 3,500
Fan
Single-action fan o
AC motor o
Air throughput in recirculation mode
Air throughput in Level 1 (m³/h) according to EN 61591 250
Air throughput in Level 2 (m³/h) according to EN 61591 350
Air throughput in Level 3 (m³/h) according to EN 61591 500
Air throughput in Booster level (m³/h) according to EN 61591 600
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 55
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 60
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 67
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 70
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 40
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 46
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 53
Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 56
Safety
Safety switch-off o
Safety switch-off
Sensible, even in case of operating errors: the cooker hood will switch itself off automatically after 10 operating hours.
Single pane tempered glass o
Single pane safety glass
To be on the safe side: this glass, should it break, shatters into many small, blunt pieces.
Technical data
Overall height for recirculation mode cooker hoods in mm 500
-
1,500
Canopy width in mm 1,000
Canopy height in mm 160
Canopy depth in mm 700
Minimum height above electric hobs in mm 550
Minimum height above gas hobs (max. 12.6 kW total power, burner ? 4.5 kW) in mm
Use above gas hobs
This hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW. 650
Net weight in kg 32.0
Length of supply lead in m 1.8
Hard-wired connection o
Total rated load in kW 0.13
Voltage in V 230
Fuse rating in A 10
Number of phases 1
Installation notes
Fitting template o
Standard accessories
Active charcoal filter o
Active AirClean filter
Efficient in absorbing odours: In recirculation mode odours are absorbed and neutralised completely.
RF Con@ctivity 2.0 communication stick for KM XKS 3000 Z
