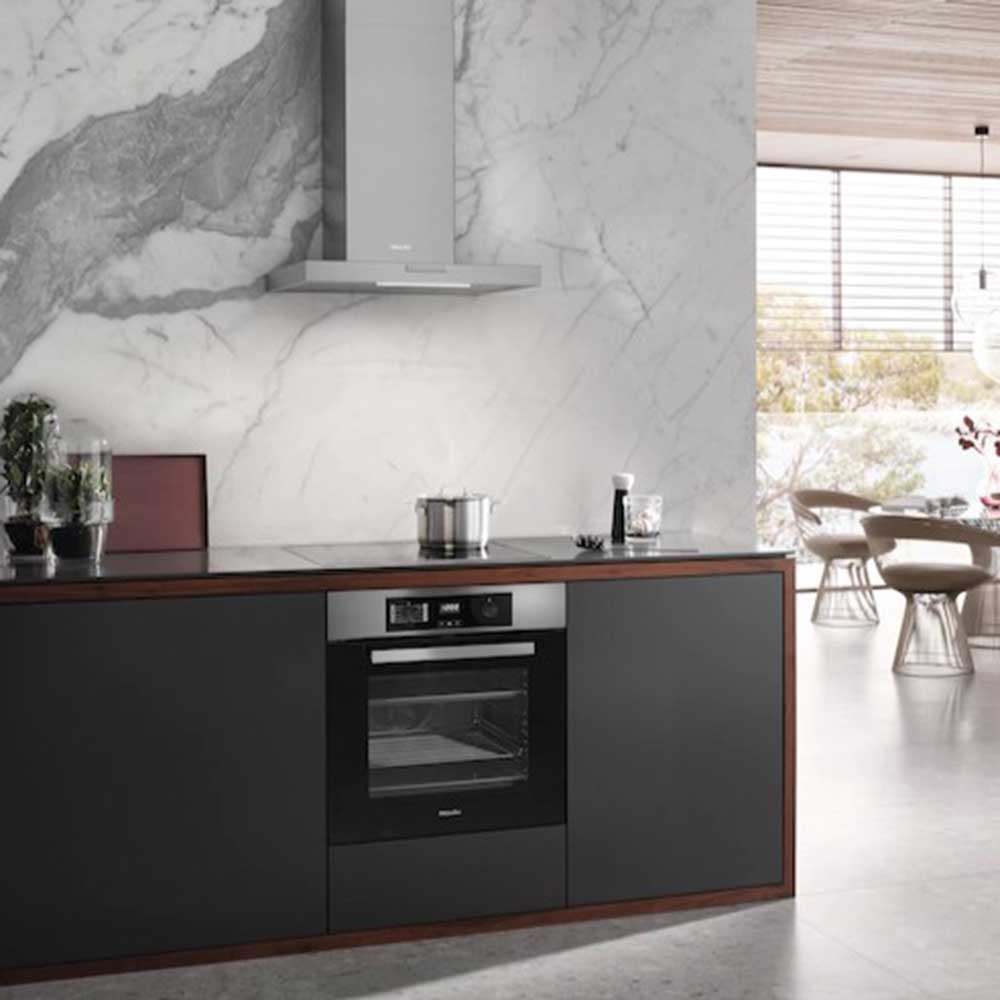

Miele DAW1620 60cm Wall Mounted Cooker Hood

SKU: DAW1620

Available to Order
£729.00Save £20.00
Was £749.00
Add to basket Add to wishlist
Warranty 2 Years

2 year manufacturer warranty

Standard Delivery We will contact you by phone to confirm your order within 24 Hours

Further details can be found on our delivery information page.

View in Store
Demonstration product available to view in store. Please call to confirm stock if you wish to purchase in store.
Our Services Collection

Would you like our delivery team to take away and recycle your old appliance when we deliver your new one?

Help & Advice Speak to our experts today

Need help or technical advice on a product or service? Get in touch, we’re always happy to help.

Call us on : 01603 599 599

Key Features

  • Timeless design – 598 mm wide stainless steel cooker hood
  • Powerful – 640 m3/h on the booster setting
  • LED strip for uniform lighting
  • Effective filtration – 10-ply aluminium metal grease filter
  • Suitable for every home – for extraction or recirculation
  • Dimensions (cm): Height 67.3-99.3 Width 59.8 Depth 50

MIELE DAW 1620 Active Wall mounted cooker hood with EasySwitch pushbuttons for convenient operation

Active AirClean filter

A completely odour-free kitchen Efficient odour absorption: the disposable filter with active charcoal must be replaced regularly.

Easy to use and effective against grease

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher. Miele cooker hoods are equipped with 10-ply stainless-steel grease filters for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discolouration occurs from being cleaned in the dishwasher and they retain their stunning appearance.

Each Miele cooker hood is unique.

Almost all Miele cooker hoods are developed at Miele’s Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Miele’s position in the market today.

Product data sheet

CONSTRUCTION TYPE

Wall mounted cooker hood
OPERATING MODES

Type of air guide Convertible
DESIGN

Colour Stainless steel
USER CONVENIENCE

Electronic controls
EFFICIENCY AND SUSTAINABILITY

Energy efficiency class (A+++ to D) A
Annual energy consumption in kWh/year 49.90
Fluid dynamic efficiency class A
Lighting efficiency class A
Grease filtering efficiency class B
FILTER SYSTEM

Number of dishwasher-safe stainless steel grease filters (10-ply) 2
LIGHTING

Number x W 1 x 3,2 W
Light intensity in Lx 390 lx
Colour temperature in K 3500 Kelvin
BLOWER

Dual-action blower
AC motor
EXTRACTION

Air throughput in Level 1 (m³/h) according to EN 61591 250
Air throughput in Level 2 (m³/h) according to EN 61591 395
Air throughput in Booster level (m³/h) according to EN 61591 640
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 52.00
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 62.00
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 71.00
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 38.00
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 48.00
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 57.00
RECIRCULATION

Air throughput in Level 1 (m³/h) according to EN 61591 235
Air throughput in Level 2 (m³/h) according to EN 61591 390
Air throughput in Booster level (m³/h) according to EN 61591 620
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 53.00
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 64.00
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 74.00
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 39.00
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 50.00
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 60.00
TECHNICAL DATA

  673–993
  803–1123
Overall height for vented and external in in. (mm) 673
Overall height for extraction mode and external mode cooker hoods in mm 993
Overall height for recirculation in in. (mm) 803
Overall height for recirculation mode cooker hoods in mm 1123
Canopy width in in. (mm) 598
Canopy height in in. (mm) 50
Depth of hood canopy in in. (mm) 500
Minimum height above electric hobs in mm 450
Net weight in kg 13.40
Length of supply lead in m 1.40
Standard plug fitted
Total rated load in kW 0.25
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
INSTALLATION NOTES

Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm 150
Telescopic chimney
EAN

4002516657040
