Inputs and outputs
Rear panel of the console
1 HDMI™ output with Audio Return Channel (ARC)
5 HDMI inputs
2 optical digital audio connections
2 coaxial digital audio connections
2 analogue L/R audio inputs
1 x 3.5 mm connection for the Acoustimass module
1 data port
1 IR repeater port
1 Ethernet port for SoundTouch and software updates via a network
1 USB connection for software updates only
Front of the console
1 HDMI input
1 x 3.5 mm jack for ADAPTiQ system and headphones
1 power button
1 source button
1 setup button the customer will press to connect Acoustimass module and rear speakers
Dimensions/weight
Control console:6.5 cm H x 40.59 cm W x 25.8 cm D (4 kg)
Acoustimass wireless bass module:32.5 cm H x 29.5 cm W x 29.5 cm D (13.6 kg)

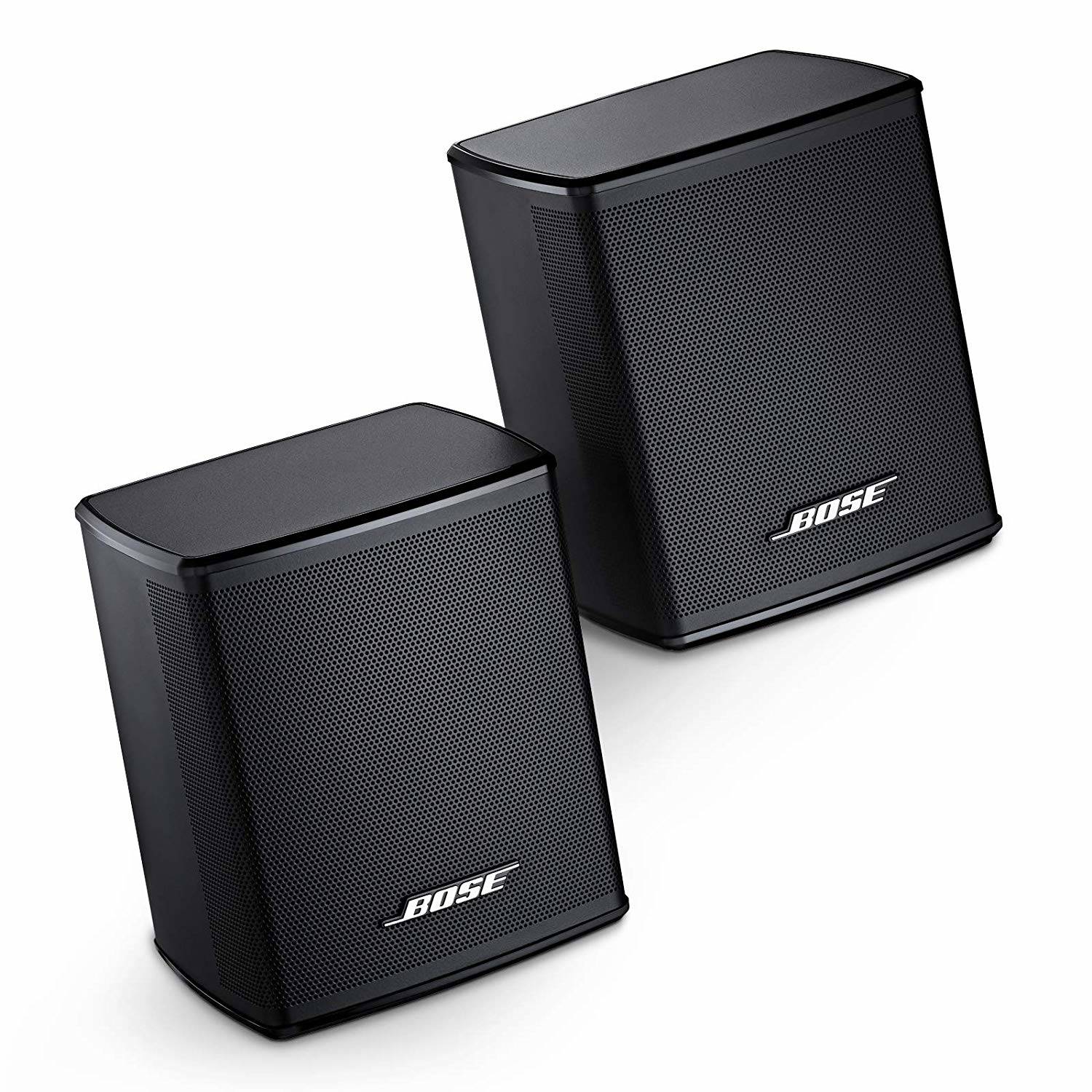

Virtually Invisible Series II speakers (each):9.4 cm H x 8.13 cm W x 8.2 cm D (0.54 kg)
WHAT’S IN THE BOX
Console
5 Virtually Invisible Series II cube speakers
Acoustimass wireless bass module
Universal remote control
Front speaker cable
2 rear speaker cables
5 AC-2 adapters
ADAPTiQ headset
IR emitter
HDMI cable
4 AA batteries
Console power supply
4 power cables
Screwdriver
Owner’s guide
Additional details
Supported audio formats: The Lifestyle 550 system supports Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS and Multichannel PCM.
Video source compatibility: It supports 4K resolution at 4096/60p with 12 bit. (Same as Lifestyle 600/650 systems.) It does not support Dolby Vision.
