Design
Stainless steel control dial
Bar handle
Drop down oven door, softClose, softOpen
Cavity inner surface: Enamel anthracite
Key Information
activeClean cleaning
Pyrolitic proof baking tray
bakingSensor
roastingSensor Plus
5.7 TFT touchDisplay Plus
Drop down oven door, softClose, softOpen
Digital display
Digital temperature display with proposal
Actual temperature display
Heating-up indicator
Sabbath setting
Light on/off when door opened/closed
Electronic door lock
Control panel lock
Automatic safety switch off
Residual heat indicator
start button
Residual heat indicator
Control panel lock
Features
Electronic oven clock timer
Main on/off switch

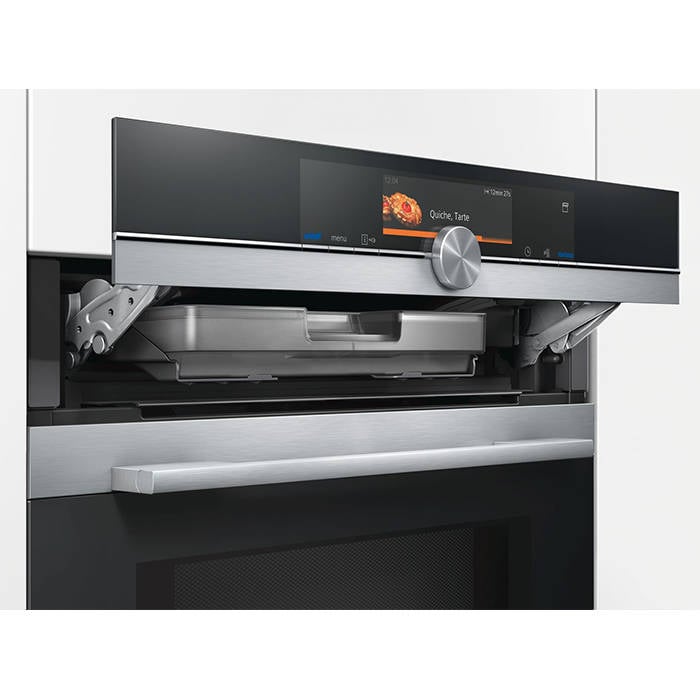

Microwave top door
3 interior lights
Multilevel LED Illumination, LED Illumination

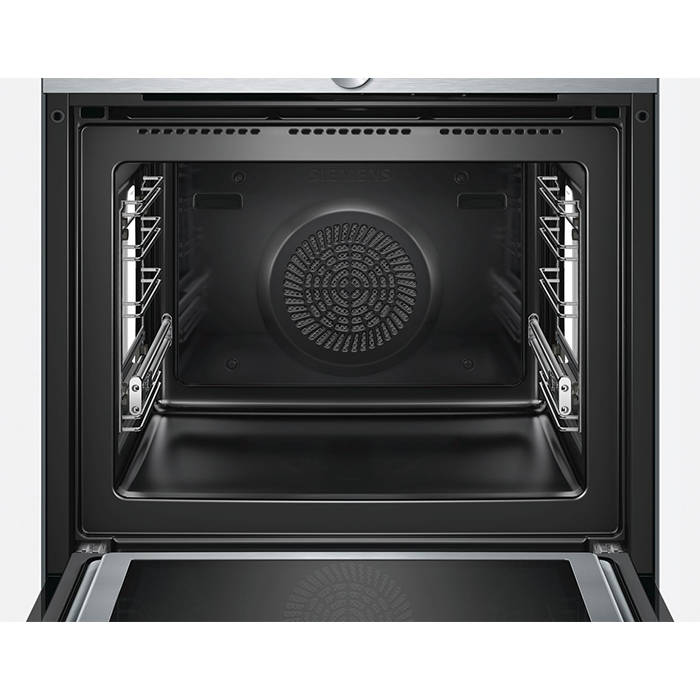

Smooth enamelled oven interior, Removable wire shelf support rails
5 shelf positions in oven
Tank empty indicator
Programmes/functions
Oven with microwave with 15 heating methods: 4D hot air, hotairEco, conventional oven, Conventional heat ECO, hot air grilling, full width grill, half width grill, intensive hot air, coolStart, bottom heat, intensive conventional heat, low Additional heating methods with steam: reheating, Dough proving
Additional heating methods with microwave: Microwave, Combi microwave variable
Additional functions:
Descaling programme
Drying function
Fast pre-heating function
cookControl Plus
Performance/technical information
WLAN - Home connect enabled
Cavity volume: 67 litres
Water tank capacity: 1 litre
Temperature range 30 °C - 300 °C
Maximum door temperature 30 °C
Location of the steam generator is outside of the cavity
Max. Power: 800 W; 5 Microwave power settings (90 W,180 W,360 W,600 W,800 W) with Inverter (MW)
Length of mains cable: 120 cm
Total connected load electric: 3.6 KW
Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm
Niche dimension (hxwxd): 585 mm - 595 mm x 560 mm - 568 mm x 550 mm
Please reference the built-in dimensions provided in the installation drawing
Standard accessories
1 x combination grid, 1 x universal pan
Technical Information
General
Width (mm)
594 mm
Height (mm)
595 mm
Max. microwave power (W)
800 W
Door opening
Handle
Type of micro-wave oven
MW-Combi
Home Connect
Home Connect
iService Remote, Remote Monitoring and Control
Home Connect Connectivity
Wi-Fi
Power consumption standby/network: Please check the user manual for how to switch off the WiFi module.
3.0 W
Time auto-standby/display on
20.0 min
Time auto-standby/displ. off
20.0 min
Time auto-standby/network
20.0 min
Construction type
Color / Material Front
Stainless steel
Construction type
Built-in
Control panel
Electronic
Door opening
Handle
Front screen material
Glass
Type of grill
Heating element
Type of micro-wave oven
MW-Combi
Turntable
Size and weight
Cavity capacity (l)
67 l
Dimensions of the product (mm)
595 x 594 x 548 mm
Cavity dimensions (mm)
357.0 x 480 x 392.0 mm
Required niche size for installation (HxWxD)
585 x 560 x 550 mm
Net weight (kg)
49.0 kg
Cooking
Highlights
N/A
Additional cooking method Conventional
Additional cooking method Fan cooking
Additional cooking method Grill
Performance and consumption values
Comfort
Included accessories
1 x combination grid, 1 x universal pan
Clock
Type of control setting and signalling devices
Rotary knob
Electronic After-sales Service
Connection
Connection rating (W)
3,600 W
Length of electrical supply cord (cm)
120 cm
Current (A)
16 A
Frequency (Hz)
50; 60 Hz
Plug type
no plug
Nominal power (kW)
220-240 V
