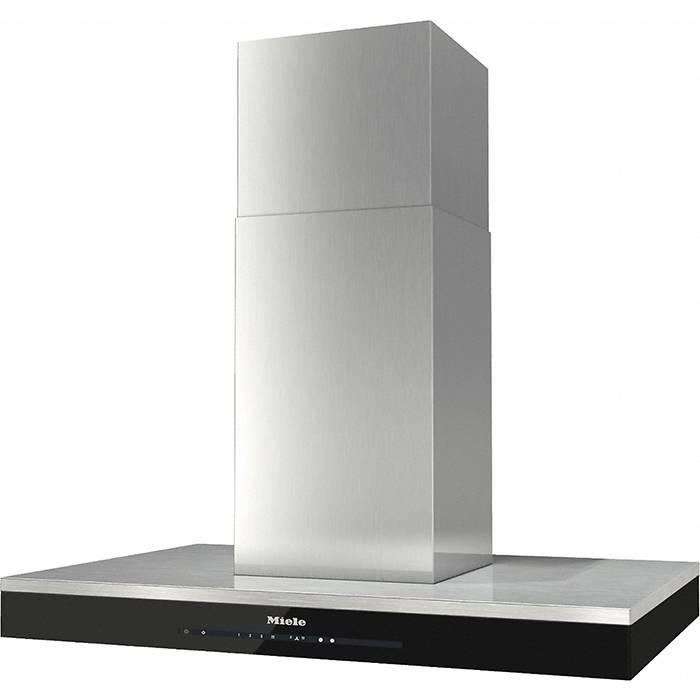

Miele DA6690 CLST 90cm Island Décor Gen6000 design

Construction type
Island cooker hood o
Design
Colour Stainless steel
RAL colours available as customisation on request o
RAL colour by special order
Optimum colour matching of you Miele cooker hood to your kitchen furnishings - On request many cooker hoods can be painted in the desired RAL colour.
Customisation possible on request o
Miele INDIVIDUAL
Just for you: Cooker hoods can be customised to suit your requirements.
Variable height available as customisation on request o
Variable width available as customisation on request o
Operating modes
Type of air guide Convertible
User convenience
Electronic controls o

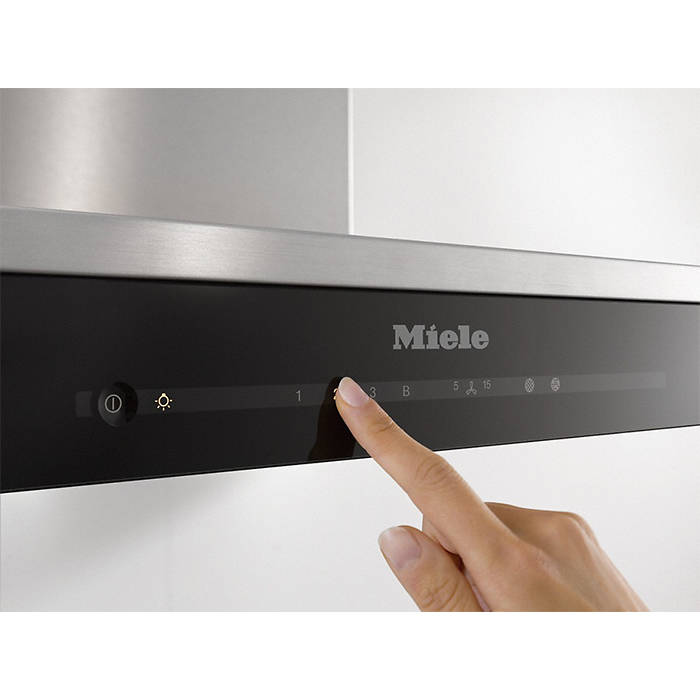

Touch-on-glass controls o
Power levels (number without Booster level) 3
Booster level o
Programmable Booster level switch-off o
Booster setting switch-off
Full power when required: The Booster setting is efficient at extracting strong cooking vapours and odours.
Run-on time 5 / 15 min. o
Run-on function
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Grease filter saturation indicator programmable o
Filter indicator
Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated.
Active charcoal filter saturation indicator programmable o
Filter indicator
Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated.
Silence package o
Silence
Efficient and quiet: The motor, chimney and canopy are specially insulated for effective sound-proofing.
Cleaning convenience
Easy-to-clean canopy interior - CleanCover o
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Efficiency and sustainability
Energy efficiency class A+
Annual energy consumption in kWh/year 33.3
Fluid dynamic efficiency class A
Lighting efficiency class A
Lighting efficiency class
This class specifies the illumination of the surface below the cooker hood in relation to energy consumption. The less energy consumed for good illumination, the better the classification. Classification ranges from class A (very efficient) to class F (inefficient).
Grease filtering efficiency class A
Grease filtering efficiency class
This class indicates the efficiency of the grease filter. The more grease captured by the grease filter, the better the grease filtering efficiency of the filter. Classification includes classes A (very efficient) to F (inefficient).
PowerManagement system o
Power management system
The intelligent Power management system automatically conserves energy when the cooker hood is in use without the user having to intervene. Within a predetermined time frame, power is automatically switched down to the next lowest setting. And a lower fan setting means automatically less energy consumption.
ECO package o
Eco package
\\\"In addition, the high efficiency of cooker hoods with the ECO package ensures excellent performance as well as exemplary energy consumption:\\\" \\\"in comparison to conventional cooker hoods, these hoods use up to 70% less energy.\\\"
Appliance networking
Miele@home o
MobileControl o
Automatic function Con@ctivity 2.0 o
Con@ctivity 2.01
Optimum room climate: The required fan output is automatically controlled by the hob settings.
Filter system
Number of dishwasher safe stainless-steel grease filters (10-ply) 3
Lighting
LED o
LED spotlights
Environmentally friendly and very long lasting: With up to 4.5 W they illuminate the hob with a warm light.
Light intensity in Lx 640
Colour temperature in K 3,500
Fan
Dual-action fan o
High-quality and powerful motors
Powerful and quiet: Radial fans on both sides ensure high air throughput and extraction with low noise levels.
ECO motor (DC motor) o
ECO motor
The ECO motor operates with DC current and saves up 70% energy compared to conventional motors. Thanks to this technology, it operates very quietly yet as powerfully as all fans used by Miele.
Air throughput with max. duct diameter in extraction mode (not for external version)
Air throughput in Level 1 (m³/h) according to EN 61591 220
Air throughput in Level 2 (m³/h) according to EN 61591 340
Air throughput in Level 3 (m³/h) according to EN 61591 500
Air throughput in Booster level (m³/h) according to EN 61591 750
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 36
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 45
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 55
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 65
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 21
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 30
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 40
Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 50
Air throughput in recirculation mode
Air throughput in Level 1 (m³/h) according to EN 61591 150
Air throughput in Level 2 (m³/h) according to EN 61591 260
Air throughput in Level 3 (m³/h) according to EN 61591 400
Air throughput in Booster level (m³/h) according to EN 61591 500
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 49
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 57
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 66
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 72
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 33
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 42
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 51
Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 57
Safety
Safety switch-off o
Safety switch-off
Sensible, even in case of operating errors: the cooker hood will switch itself off automatically after 10 operating hours.
Single pane tempered glass o
Single pane safety glass
To be on the safe side: this glass, should it break, shatters into many small, blunt pieces.
Technical data
Overall height for extraction mode and external mode cooker hoods in mm 705
-
1,005
Overall height for recirculation mode cooker hoods in mm 765
-
1,075
Canopy width in mm 898
Canopy height in mm 85
Canopy depth in mm 598
Minimum height above electric hobs in mm 450
Minimum height above gas hobs (max. 12.6 kW total power, burner ? 4.5 kW) in mm
Use above gas hobs
This hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW. 650
Net weight in kg 35.0
Hard-wired connection o
Total rated load in kW 0.14
Voltage in V 230
Fuse rating in A 10
Number of phases 1
Installation notes
Extraction ducting connection at top o
Diameter of extraction ducting connection in mm 150
Telescopic chimney o
Telescopic chimney
With the telescopic chimney, Miele wall- mounted and island cooker hoods can be adjusted to the proper height over the hob during installation.
Standard accessories
Non-return flap o
Non-return flap
A non-return flap is supplied with every appliance and prevents the backflow of cold and/or warm outside air with extraction mode cooker hoods. This component is installed in the exhaust socket above the motor in your cooker hood and prevents air from flowing back through the extraction ducting when the appliance is not in use.
RF Con@ctivity 2.0 communication stick for KM XKS 3000 Z
