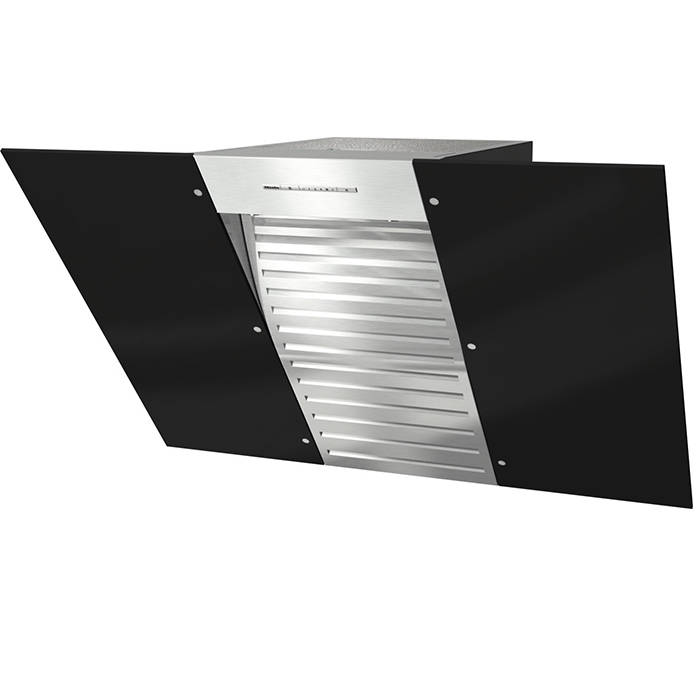

Miele DA6096W Black Wing Wall Mounted Cooker Hood

Construction type
Wall mounted cooker hood o
Design
Colour Obsidian black
Operating modes
Type of air guide Convertible
User convenience
Electronic controls o
Light-touch switches with LED o
Light-touch switches with LED
The light-touch switches with LED lighting provide special convenience. In addition to increasing and decreasing power output and switching the lighting on and off, you will find special features such as a fan run-on function or filter saturation indicator on mid-range appliances and higher.
Power levels (number without Booster level) 3
Booster level o
Cleaning convenience
Easy-to-clean canopy interior - CleanCover o
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Efficiency and sustainability
Energy efficiency class B
Annual energy consumption in kWh/year 70.4
Fluid dynamic efficiency class B
Lighting efficiency class A
Lighting efficiency class
This class specifies the illumination of the surface below the cooker hood in relation to energy consumption. The less energy consumed for good illumination, the better the classification. Classification ranges from class A (very efficient) to class F (inefficient).
Grease filtering efficiency class B
Grease filtering efficiency class
This class indicates the efficiency of the grease filter. The more grease captured by the grease filter, the better the grease filtering efficiency of the filter. Classification includes classes A (very efficient) to F (inefficient).
Filter system
Number of dishwasher safe stainless-steel grease filters (10-ply) 1
Lighting
LED o
LED spotlights
Environmentally friendly and very long lasting: With up to 4.5 W they illuminate the hob with a warm light.
Light intensity in Lx 300
Colour temperature in K 3,500
Fan
Dual-action fan o
High-quality and powerful motors
Powerful and quiet: Radial fans on both sides ensure high air throughput and extraction with low noise levels.
AC motor o
Air throughput with max. duct diameter in extraction mode (not for external version)
Air throughput in Level 1 (m³/h) according to EN 61591 200
Air throughput in Level 2 (m³/h) according to EN 61591 300
Air throughput in Level 3 (m³/h) according to EN 61591 400
Air throughput in Booster level (m³/h) according to EN 61591 650
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 40
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 48
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 54
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 66
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 25
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 33
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 39
Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 51
Air throughput in recirculation mode
Air throughput in Level 1 (m³/h) according to EN 61591 120
Air throughput in Level 2 (m³/h) according to EN 61591 220
Air throughput in Level 3 (m³/h) according to EN 61591 320
Air throughput in Booster level (m³/h) according to EN 61591 520
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 48
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 55
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 62
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 71
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 33
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 41
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 47
Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 56
Safety
Safety switch-off o
Safety switch-off
Sensible, even in case of operating errors: the cooker hood will switch itself off automatically after 10 operating hours.
Single pane tempered glass o
Single pane safety glass
To be on the safe side: this glass, should it break, shatters into many small, blunt pieces.

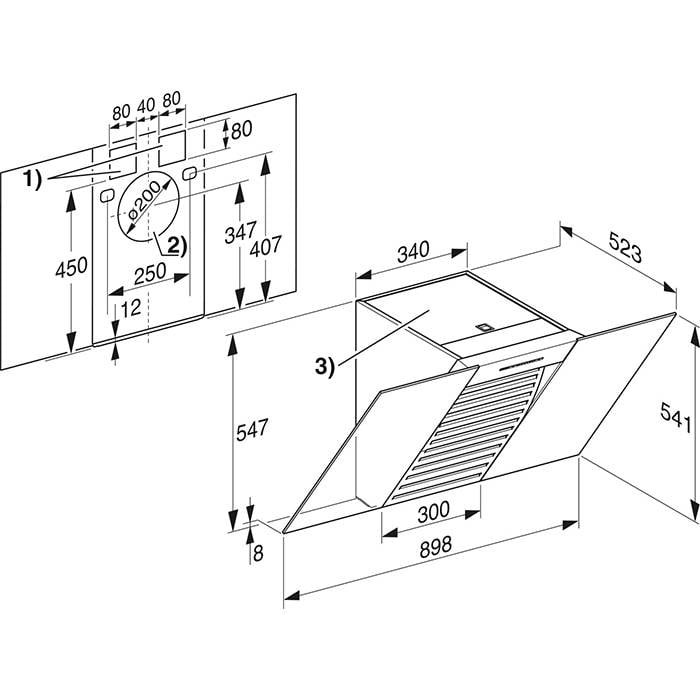

Technical data
Overall height for extraction mode and external mode cooker hoods in mm 547
-
547
Overall height for recirculation mode cooker hoods in mm 547
-
547
Canopy width in mm 898
Canopy height in mm 547
Canopy depth in mm 523
Minimum height above electric hobs in mm 450
Minimum height above gas hobs (max. 12.6 kW total power, burner ? 4.5 kW) in mm
Use above gas hobs
This hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW. 650
Net weight in kg 20.0
Length of supply lead in m 1.5
Standard plug fitted o
Hard-wired connection o
Total rated load in kW 0.21
Voltage in V 230
Fuse rating in A 10
Number of phases 1
Installation notes
Extraction ducting connection at top o
Extraction connection at top and rear o
Diameter of extraction ducting connection in mm 150
Standard accessories
Non-return flap o
~
