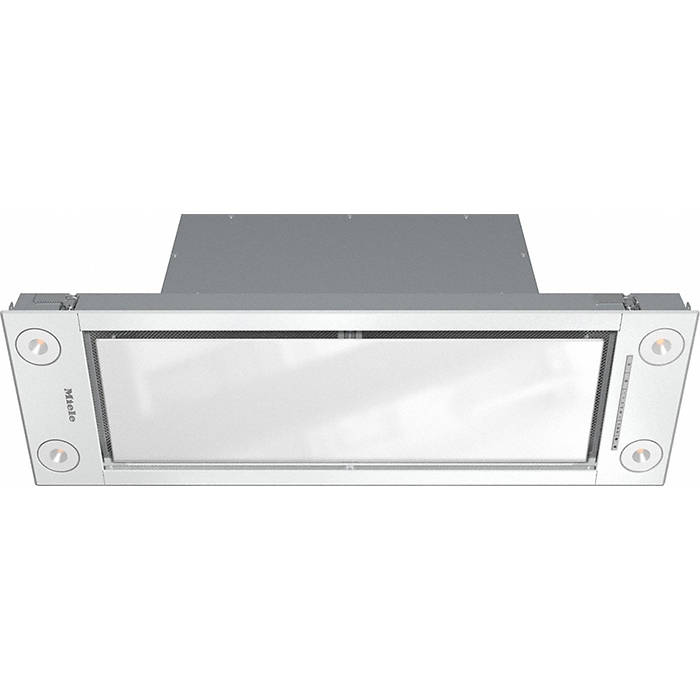

Miele DA2690 88cm Wide Built in Extractor with Touch Controls

Construction type
Integrated extractor o
Design
Colour Brilliant white
Edge extraction o
Operating modes
Type of air guide Convertible
User convenience
Electronic controls o
Light-touch switches with LED o
Light-touch switches with LED
The light-touch switches with LED lighting provide special convenience. In addition to increasing and decreasing power output and switching the lighting on and off, you will find special features such as a fan run-on function or filter saturation indicator on mid-range appliances and higher.
Power levels (number without Booster level) 3
Booster level o
Programmable Booster level switch-off o
Booster setting switch-off
Full power when required: The Booster setting is efficient at extracting strong cooking vapours and odours.
Run-on time 5 / 15 min. o
Run-on function
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Grease filter saturation indicator programmable o
Filter indicator
Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated.
Active charcoal filter saturation indicator programmable o
Filter indicator
Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated.
Cleaning convenience
Easy-to-clean canopy interior - CleanCover o
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Efficiency and sustainability
Energy efficiency class A
Annual energy consumption in kWh/year 36.2
Fluid dynamic efficiency class A
Lighting efficiency class A
Lighting efficiency class
This class specifies the illumination of the surface below the cooker hood in relation to energy consumption. The less energy consumed for good illumination, the better the classification. Classification ranges from class A (very efficient) to class F (inefficient).
Grease filtering efficiency class A
Grease filtering efficiency class
This class indicates the efficiency of the grease filter. The more grease captured by the grease filter, the better the grease filtering efficiency of the filter. Classification includes classes A (very efficient) to F (inefficient).
PowerManagement system o
Power management system
The intelligent Power management system automatically conserves energy when the cooker hood is in use without the user having to intervene. Within a predetermined time frame, power is automatically switched down to the next lowest setting. And a lower fan setting means automatically less energy consumption.
ECO package o
Eco package
\\\"In addition, the high efficiency of cooker hoods with the ECO package ensures excellent performance as well as exemplary energy consumption:\\\" \\\"in comparison to conventional cooker hoods, these hoods use up to 70% less energy.\\\"
Appliance networking
Miele@home o
MobileControl o
Automatic function Con@ctivity 2.0 o
Con@ctivity 2.01
Optimum room climate: The required fan output is automatically controlled by the hob settings.
Filter system
Number of dishwasher safe stainless-steel grease filters (10-ply) 2
Lighting
LED o
LED spotlights
Environmentally friendly and very long lasting: With up to 4.5 W they illuminate the hob with a warm light.
Light intensity in Lx 480
Colour temperature in K 3,500
Fan
Dual-action fan o
High-quality and powerful motors
Powerful and quiet: Radial fans on both sides ensure high air throughput and extraction with low noise levels.
ECO motor (DC motor) o
ECO motor
The ECO motor operates with DC current and saves up 70% energy compared to conventional motors. Thanks to this technology, it operates very quietly yet as powerfully as all fans used by Miele.
Air throughput with max. duct diameter in extraction mode (not for external version)
Air throughput in Level 1 (m³/h) according to EN 61591 240
Air throughput in Level 2 (m³/h) according to EN 61591 300
Air throughput in Level 3 (m³/h) according to EN 61591 400
Air throughput in Booster level (m³/h) according to EN 61591 640
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 42
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 46
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 52
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 63
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 27
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 32
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 38
Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 48
Air throughput in recirculation mode
Air throughput in Level 1 (m³/h) according to EN 61591 150
Air throughput in Level 2 (m³/h) according to EN 61591 250
Air throughput in Level 3 (m³/h) according to EN 61591 340
Air throughput in Booster level (m³/h) according to EN 61591 500
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 54
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 58
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 73
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 39
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 44
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 50
Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 59
Safety
Safety switch-off o
Safety switch-off
Sensible, even in case of operating errors: the cooker hood will switch itself off automatically after 10 operating hours.
Single pane tempered glass o
Single pane safety glass
To be on the safe side: this glass, should it break, shatters into many small, blunt pieces.
Technical data
Canopy width in mm 880
Canopy height in mm 64
Canopy depth in mm 293
Minimum height above electric hobs in mm 450
Minimum height above gas hobs (max. 12.6 kW total power, burner ? 4.5 kW) in mm
Use above gas hobs
This hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW. 650
Net weight in kg 14.0
Length of supply lead in m 1.5
Total rated load in kW 0.10
Voltage in V 230
Fuse rating in A 10
Number of phases 1
Installation notes
Extraction ducting connection at top o
Extraction connection at top and rear o
Diameter of extraction ducting connection in mm 150
Standard accessories
Non-return flap o
Non-return flap
A non-return flap is supplied with every appliance and prevents the backflow of cold and/or warm outside air with extraction mode cooker hoods. This component is installed in the exhaust socket above the motor in your cooker hood and prevents air from flowing back through the extraction ducting when the appliance is not in use.
RF Con@ctivity 2.0 communication stick for KM XKS 3000 Z
