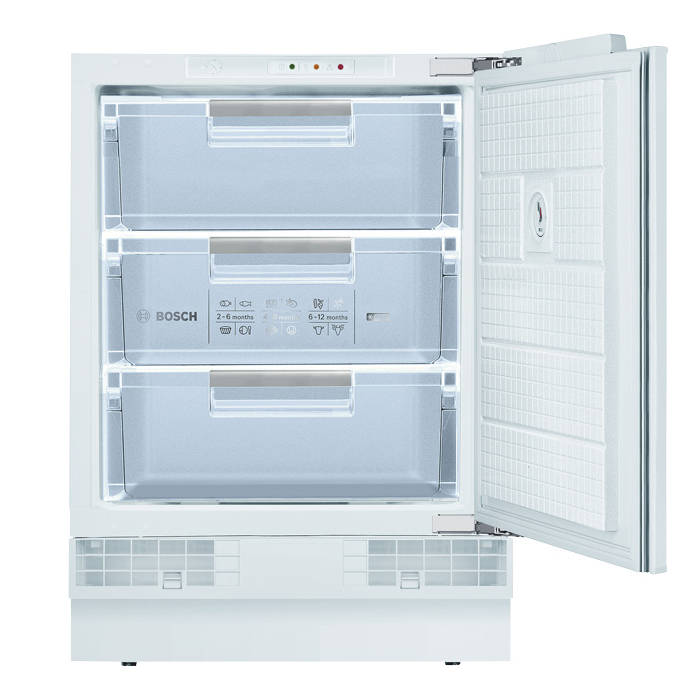

Bosch GUD15A50GB Integrated Build Under Freezer

SKU: GUD15A50GB

A+
Discontinued

This product is discontinued and no longer available to purchase.

Warranty 2 Years

2 year manufacturer warranty

Standard Delivery Stock on order - Call us for latest availability info

Further details can be found on our delivery information page.

Our Services Installation, Collection

Would you like our delivery team to take away and recycle your old appliance when we deliver your new one?

Help & Advice Speak to our experts today

Need help or technical advice on a product or service? Get in touch, we’re always happy to help.

Call us on : 01603 599 599

Key Features

  • 98 litre capacity – holds 5 bags of food shopping
  • Rapidly freezes new food added to the freezer
  • Door alarm tells you if door has been left open
  • Reversible door to suit your kitchen layout
  • Dimensions (cm) H82 x W59.8 x D54.8

Keep your frozen treats in the perfect conditions with this Bosch under counter freezer. Its 98 litre capacity can hold 5 bags of food shopping, letting you fill the drawers with all your favourites. When you’re back from the supermarket, select the handy SuperFreeze function to rapidly lower the temperature inside. This quickly freezes new groceries to lock in vital flavours and nutrients. The reversible door can be set to open to the left or right, and there’s a handy alert too, in case you forget to shut it – keeping your food at its best. This model has feet and is designed to fit under a worktop.

This model has a fixed hinge. This means that, unlike a sliding hinge, both the appliance door and your cabinet door are attached to the kitchen unit by the same hinge, and will move as one when you open it. Please check that your old appliance had a fixed hinge, or that your cabinet door has pre-drilled holes for one, or this model won’t fit.

Technical data Product group Freezer
Brand Bosch
Product name/family upright freezer width 56 - 60 cm
Product name / Commercial code GUD15A50GB
Internal article number GUD15A50GB
EAN code 4242002650890
Product category Upright freezer
Built-in / Free-standing Built-in
Installation typology Full-integrated
Type of control mechanical
Type of control setting and signalling devices Indicat standard freezing opt., Super setting for freezer, Temperature for freezer, Warning function freezer sect., Warning signal door open, Warning signal for malfunction, Yellow indic continuous operat.
Main colour of product
Color / Material body
Colour.Material door
Door panel options Not possible
Alternative colors available
Connection Rating (W) 90
Current (A) 13
Voltage (V) 220-240
Frequency (Hz) 50
Approval certificates VDE
Length electrical supply cord (m) 230.0
Plug type GB plug
Total unit gross capacity (l) 114
Total unit gross capacity (Cu Ft)
Total unit net capacity (l) 98
Total unit net capacity (Cu Ft)
Height of the product (mm) 820
Width of the product (mm) 598
Depth of the product 548
Depth with open door 90 degree (mm) 1150
Adjustable feet No
Maximum adjustability feet (mm)
Height of the packed product (mm) 890
Width of the packed product (mm) 670
Depth of the packed product (mm) 610
Minimum height for installation (mm) 820
Maximum height for installation (mm) 820
Minimum width for installation (mm) 600
Maximum width for installation (mm) 600
Depth for installation (mm) 550
Net weight (kg) 35.00
Gross weight (kg) 38.00
Energy efficiency class - NEW (2010/30/EC) A+
Energy consumption annual (kWh/annum) - NEW (2010/30/EC) 193
Freezer Net capacity (l) - NEW (2010/30/EC) 98
Frost free system No
Temperature rise time (h) 24
Freezing capacity (kg/24h) - NEW (2010/30/EC) 12
Climate class SN-ST
Noise level (dB(A) re 1 pW) 38
Energy efficiency class X
Energy consumption (kWh)
Total annual energy consumption (kWh)
Net capacity (l) 98
Freezing capacity (kg) 12
Storage Period in Event of Power Failure (h) 24
Available languages display
Warning signal / malfunction Both visual and audible
Defrost process manual
Fast freezing switch Yes
Door opened indicator Yes
Temperature adjustable Yes
Thaw water drainage system Yes
Door hinge ,
Cover door installation system Fixed-mounted
Number of drawers/baskets (Stck) 3
Number of freezing flaps (Stck) 0
Lockable door No
Thermometer freeze section Analog
Light No
Included accessories 2 x cold accumulator, 1 x ice cube tray
Optional accessories
Specification of product image MCSA049480_GUD15A55_def.jpg

Other data Country versions available / similar product
Construction type
Corner width 60.00
Corner height in cm 82.00
Corner depth 55.00
Required niche size for installation (HxWxD) 820 x 600 x 550
Height of appliance w. worktop
Height of worktops
Height with open cover (90°)
Depth with open lid
Width with opened door (90°) 60.00
Depth with door open (90°) 115.00
Freezer compartment height 16.00
Dimensions of the packed product (HxWxD) (mm) 890 x 670 x 610
Type of hinge Flush-folding
Reversible Door Hinge Yes
No. of external excerpts
No. of external doors 1
Number of collapsible freezer 0
No. of bask. a. draw.(freezer) 3
Yellow indic continuous operat Yes
Indicat standard freezing op Yes
Ice cube maker 1 ice cube tray
Compartments in interior space 3
Star rating freezer section 4
Temperature for freezer digital 7 segment
Table plate removable No
Warning signal door open Fridge
Electronic After-sales Service No
Energy efficiency percent -EU
Cold appliance Isobutane
INS-Enclosure in production English
max. quantity of refrigerant (g)
EAN Barcode '!2E20AC-gfaija
