Key Features
This spectacular cooker hood takes up so little space that it appears to be floating effortlessly above the hob. White powder coated canopy with black glass Approx. width (mm) 900 For exact product or building in dimensions, please refer to the operating instruction manual and building-in guide. Auto switch-off (5-15 min run on) This run-on […]
This spectacular cooker hood takes up so little space that it appears to be floating effortlessly above the hob. White powder coated canopy with black glass
Approx. width (mm) 900
For exact product or building in dimensions, please refer to the operating instruction manual and building-in guide.
Auto switch-off (5-15 min run on)
This run-on function will turn its self off after selected time.
Light switch
The light can be turned on independently of the cooker hood.
Stainless steel grease filters
Our metal grease filters have a quick release mechanism so they can be washed by hand or in the dishwasher.
Con@ctivity
For hood to hob communication ensuring that the hood is automatically adjusted according to the hob useage.
Extraction rate per hour
Recirculation - Extraction rate 180/360/550
Noise level
Recirculation - Noise level 56/69/78
Design
Range Wall
Wall Y A wall mounted extractor.
Recirculation Only Y
Features
Halogen lighting Y Stylish halogen lighting to give a perfect atmosphere in your kitchen
Halogen lighting with dimmer function 2 x 20 With dimmer switch for halogen lights you can set the ambience and atmosphere in your kitchen at the touch of a button.
Double acting radial fan Single
Stainless steel grease filters 2 Our metal grease filters have a quick release mechanism so they can be washed by hand or in the dishwasher.
Charcoal filters supplied 2 (DKF 16-1)
White powder coated canopy with black glass Y
Non return flap Y
Sound insulation Y
Number of fan settings 3
Including Intensive setting Y
Automatic switch off of Intensive setting after 10 min Y
Con@ctivity Y For hood to hob communication ensuring that the hood is automatically adjusted according to the hob useage.
Is this model suitable for installation with Gas hob? Yes
Controls
Touch controls for power levels Y Intuitive to use and easy to clean.
Light switch Y The light can be turned on independently of the cooker hood.
Light switch with LED Y
On/Off Y
On/Off with LED Y
Auto switch-off (5-15 min run on) Y This run-on function will turn its self off after selected time.
Check grease filter Y
Check charcoal filter Y
Audible tone when a sensor is touched Y

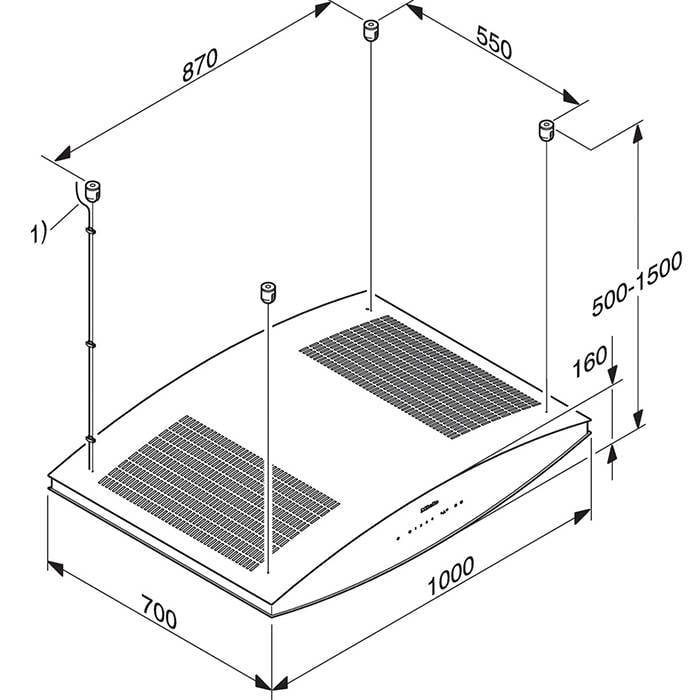

Dimensions
Height - recirculation mode (mm) 160
Width of appliance (mm) 898
Approx. width (mm) 898
For exact product or building in dimensions, please refer to the operating instruction manual and building-in guide.
Depth of appliance (mm) 520
Net weight (kg) 20
Electrical connection
Minimum safety distance between cooker hood and ceiling 300
Length of cable (EXT in brackets) (cm) 120 cm
Voltage 230 V
Total connected load 200 W
Fuse rating 5 A
Radio/TV suppressed Y
Mains interference suppressed Y
Operating/Installation instructions Y
Minimum safety distance from electric hob 450
Minimum safety distance from gas hob, open grill or deep-fat fryer 650
