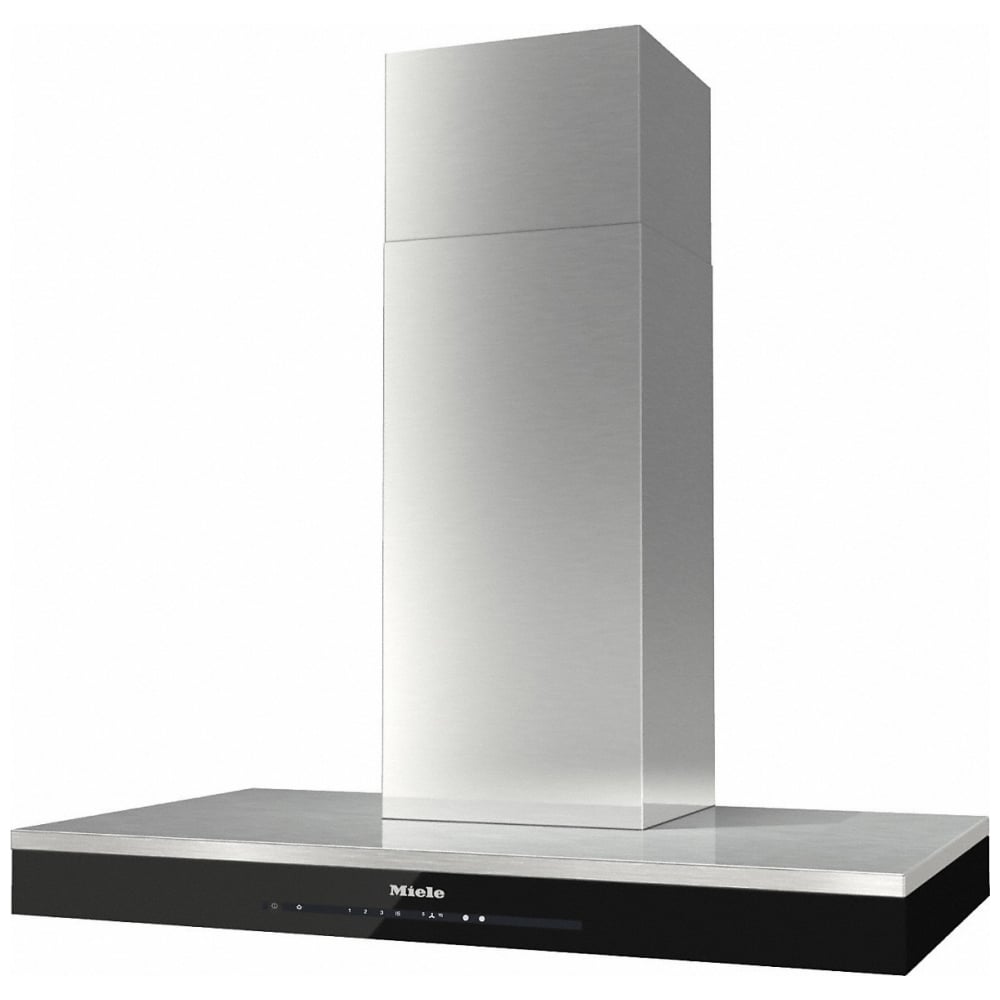

Miele DA6698W 90cm Wide Extractor

SKU: DA6698W


This product is discontinued and no longer available to purchase.

Warranty 2 Years

2 year manufacturer warranty

Standard Delivery Stock on order - Call us for latest availability info

Further details can be found on our delivery information page.

Help & Advice Speak to our experts today

Need help or technical advice on a product or service? Get in touch, we’re always happy to help.

Call us on : 01603 599 599

Key Features

  • Family design – to match Generation 6000 built-in appliances
  • Unique convenience – Con@ctivity 2.0
  • Powerful – 640m3/h on the booster setting
  • Energy-efficient and quiet – powerful ECO motor
  • Pleasantly quiet – Miele acoustic package

This superb chimney style cooker hood from Miele is 90cm wide and boasts a 400m³ per hour extraction rate. It is designed to be ducted through an external wall but can also be operated in recirculation mode with the use of optional charcoal filters. Finished in stainless steel and glass it will create a real focal point in your kitchen.

LED spotlights
Environmentally friendly and very long lasting: With up to 4.5 W they illuminate the hob with a warm light.

ECO motor
Powerful and quiet: The DC motor saves up to 70% energy compared with conventional motors.

Booster setting switch-off
Full power when required: The Booster setting is efficient at extracting strong cooking vapours and odours.

Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

High-quality and powerful motors
Powerful and quiet: Radial fans on both sides ensure high air throughput and extraction with low noise levels.

Stainless steel grease filters (10-layer)
Convenient cleaning: The high-quality metal grease filters are dishwasher-proof and extremely durable.

Efficient and quiet: The motor, chimney and canopy are specially insulated for effective sound-proofing.

Active AirClean filter
Efficient in absorbing odours: In recirculation mode odours are absorbed and neutralised completely.

Safety switch-off
Sensible, even in case of operating errors: the cooker hood will switch itself off automatically after 10 operating hours.

Run-on function
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.

Filter indicator
Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated.


Brand Miele
GTIN 4002515978498
Type Wall DecorType
ColourStainless steel
RAL colour possible as special order
Customisation possible on request
Variable height available as special order
Operating modes
Type of air guide Convertible
User convenience

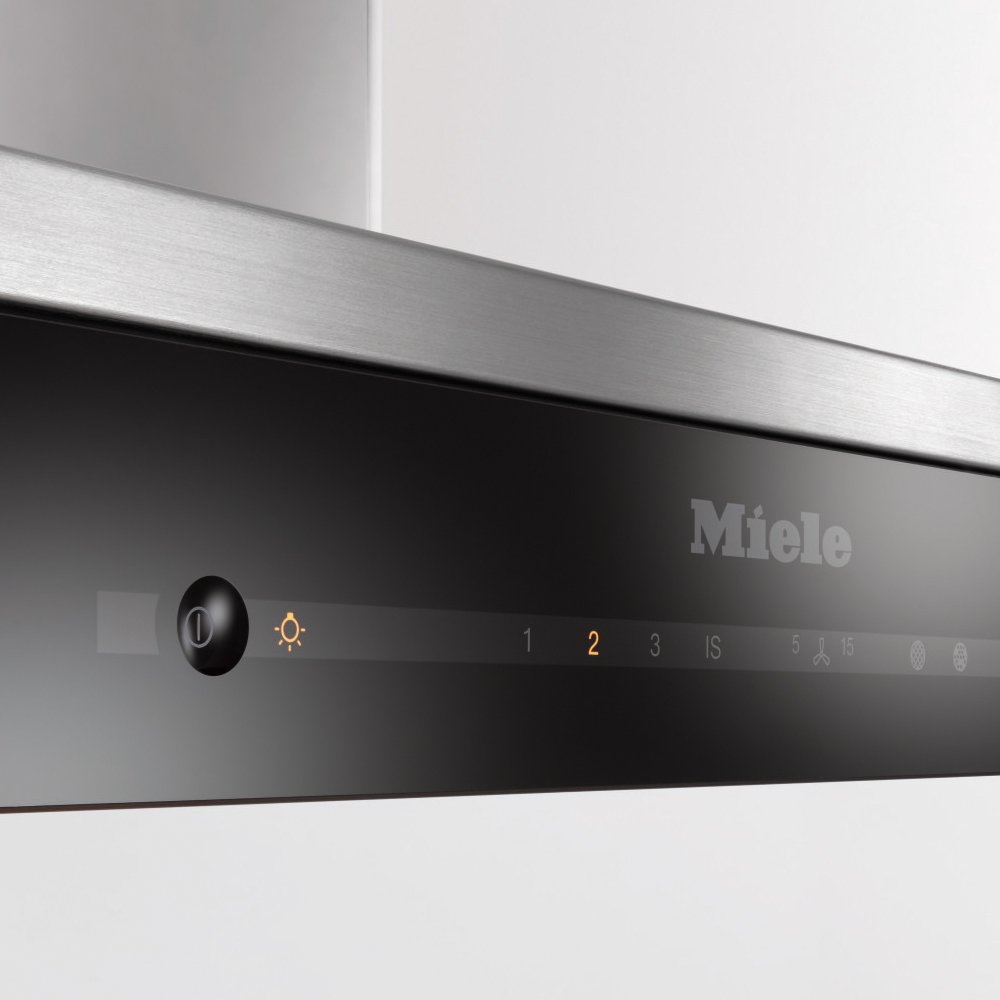

Electronic controls
Touch controls on glass
Power levels (number excl. Booster setting)3
Booster setting
Programmable Booster switch-off
Run-on time 5/15 mins
Programmable grease filter saturation indicator
Programmable charcoal filter saturation indicator
Cleaning convenience
Easy-to-clean Clean Cover hood liner
Efficiency and sustainability
Annual energy consumption in kWh/year30.8
Energy efficiency classA+
Fluid dynamic efficiency classA
Lighting efficiency classA
Grease filtering efficiency classA
Networking of domestic appliances
Automatic function Con@ctivity 2.0
Light intensity in Lx520
Colour temperature in K3,500
Safety switch-off
Technical data
Canopy width in mm898
Depth of hood carcase in mm500
Minimum distance above electric hobs in mm450
Minimum height above gas hob (max. 12.6 kW total power, burner ? 4.5 kW) in mm650
Net weight in kg26.0
Length of electrical cable in m1.5
Total connected load in kW0.10
Voltage in V230
Fuse rating in A10
Number of phases1Installation notes
Vent connection at top
Vent connection on side
Vent connection at top, rear and side
Telescopic chimney
Accessories supplied
Non-return flap
Wireless stick Con@ctivity 2.0 for KMXKS 3000 Z
